Oil Tank Custom Round 3.5 Qts Hardbody Softail Rigid & Custom Frames Ctr Fill W / Bty Box Cp
Oil Tank Custom Round 3.5 Qts Hardbody Softail Rigid & Custom Frames Ctr Fill W / Bty Box Cp

Oil Tank Custom Round 3.5 Qts Hardbody Softail Rigid & Custom Frames Ctr Fill W / Bty Box Cp

86074
$408.31
$408.31
Shipping calculated at checkout.
Quantity must be 1 or more

HARDBODY ROUND OIL TANKS FOR CUSTOM USE

WEIGHT: 9.18
  • THESE TANKS FEATURE OUR EXCLUSIVE OIL RETURN ROUTING SYSTEM. THE INTERNAL OIL RETURN TUBE IS EXTENDED ALLOWING IT TO DUMP THE HOT RETURNED ENGINE OIL TO THE FAR LEFT SIDE OF THE OIL TANK. THIS KEEPS THE RETURNED OIL AS FAR AWAY FROM THE FEED LINE , CREATING AN EFFICIENT CIRCULATING EFFECT
  • 3.5 QUART WITH BATTERY TRAY
  • LOWER LEFT HAND RELIEF FOR USE WITH A CHAIN OR BELT REAR DRIVE
  • THE FLAT SIDE TANKS MEASURE 11 7/8" LONG AND THE DOMED SIDE TANKS MEASURE 12 1/2" LONG
  • TANK BODY MEASURES 6 1/2" O.D.
  • MADE FROM 16 GAUGE STEEL TO RESIST CRACKING
  • 100% TIG WELDED FOR MAXIMUM STRENGTH
  • INCLUDES HEAVY DUTY FRONT MOUNT AND FILL PLUG
  • USE WITH SOFTAIL SIZE BATTERY AND OE STYLE REAR TANK MOUNT
  • USES 1/8-27 NPT FITTINGS FOR VENT , RETURN & FEED LINES , AND 1/4-18 NPT FITTINGS FOR OIL DRAIN (SEE THE FUEL SECTION)
  • FOR BEST RESULTS USE OUR 80627 RUBBER MOUNTS AND 10807 BATTERY CUSHION
NOTE: AS WITH ANY NEW OIL TANK , ALWAYS THOROUGHLY INSPECT AND FLUSH BEFORE INSTALLING
HARDBODY

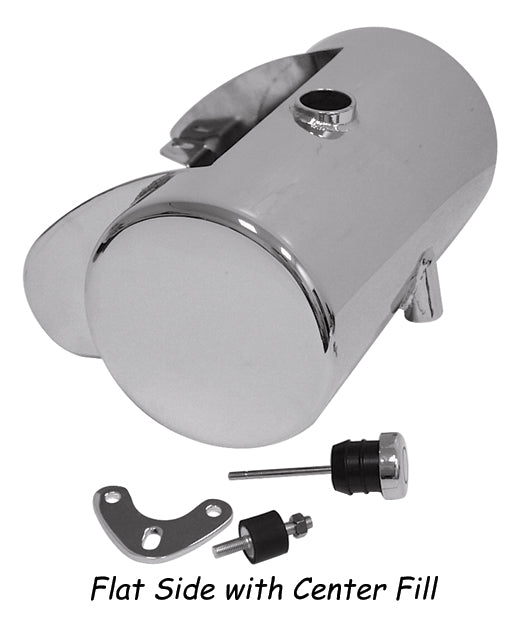

CHROME PLATED FLAT SIDE CENTER FILL OIL TANK

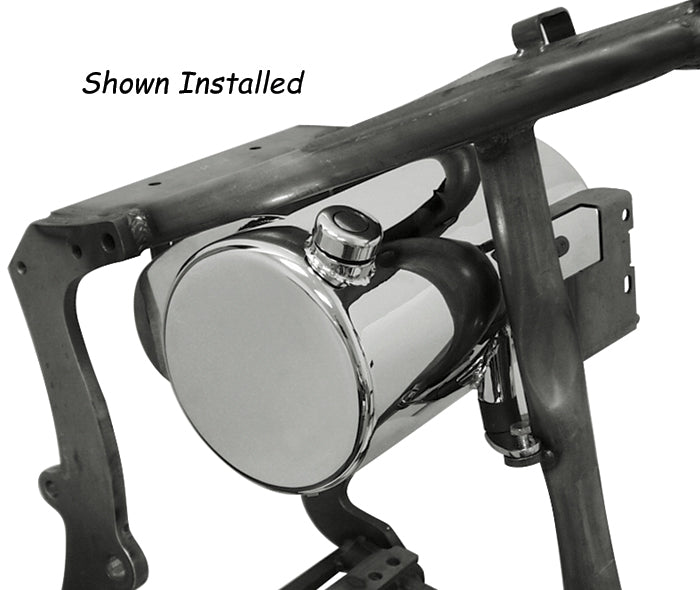

FITS ALL HARDBODY FAT-A-TUDE , CHOPPER STYLE & RIGID FRAMES. ALSO FITS OE SOFTAIL FRAMES 1984/1999 IF OUR 85152 FRONT TANK MOUNT IS USED
