V-FACTOR 4.1 GALLON STRETCHED CHOPPER GAS TANKS 22" TUNNEL FOR HARLEY DAVIDSON CUSTOM FRAMES
WEIGHT: 16.10
- FRAME REQUIREMENTS:
- 4" STRETCH IN THE FRONT DOWN TUBES
- 3" MINIMUM STRETCH IN THE BACKBONE
- BACKBONE O.D. CANNOT EXCEED 1 3/4"

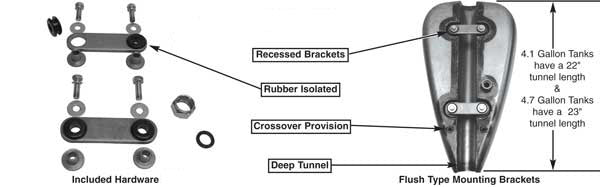

- MOUNTING BRACKETS ARE RUBBER ISOLATED TO PREVENT VIBRATION CRACKS
- WELD-TO-FRAME BRACKETS RECESS IN THE BOTTOM OF THE TANK FOR A HIDDEN LOOK
- TAPPED 3/8-24 NPT AT REAR OF TANK FOR GAS CROSSOVER LINE (NOT INCLUDED)
- USE WITH 13/16" (22 MM) FUEL VALVE
NOTE: THESE TANKS MUST BE PRESSURE TESTED , SEALED AND PRE-MOUNTED ON FRAME TO VERIFY COMPATIBILITY OF ALL RELATED PARTS BEFORE PAINTING
V-FACTOR
RAW STEEL 4.1 GALLON TANK
22" TUNNEL LENGTH
1982/LATER BUNG STYLE , CAP NOT INCLUDED
