CHOPPER GAS TANK, 23" TUNNEL UW/CUS FRM,W/FLUSH MT CAP,FLSH BUNG,1 PIECE,4.7 GAL,W/CUS MTG
CHOPPER GAS TANK, 23" TUNNEL UW/CUS FRM,W/FLUSH MT CAP,FLSH BUNG,1 PIECE,4.7 GAL,W/CUS MTG
CHOPPER GAS TANK, 23" TUNNEL UW/CUS FRM,W/FLUSH MT CAP,FLSH BUNG,1 PIECE,4.7 GAL,W/CUS MTG
CHOPPER GAS TANK, 23" TUNNEL UW/CUS FRM,W/FLUSH MT CAP,FLSH BUNG,1 PIECE,4.7 GAL,W/CUS MTG

CHOPPER GAS TANK, 23" TUNNEL UW/CUS FRM,W/FLUSH MT CAP,FLSH BUNG,1 PIECE,4.7 GAL,W/CUS MTG

81073
Regular price
$406.00
Sale price
$406.00
Shipping calculated at checkout.
Quantity must be 1 or more

V-FACTOR STRETCHED CHOPPER GAS TANKS FOR HARLEY DAVIDSON CUSTOM FRAMES

WEIGHT: 17.34
  • FRAME REQUIREMENTS:
    • 4" STRETCH IN THE FRONT DOWN TUBES
    • 3" MINIMUM STRETCH IN THE BACKBONE
    • BACKBONE O.D. CANNOT EXCEED 1 3/4"

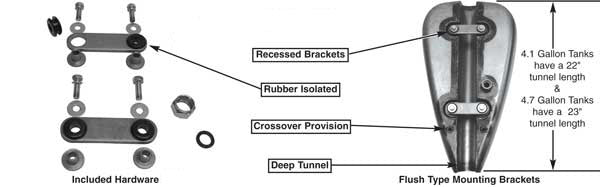

    • MOUNTING BRACKETS ARE RUBBER ISOLATED TO PREVENT VIBRATION CRACKS
    • WELD-TO-FRAME BRACKETS RECESS IN THE BOTTOM OF THE TANK FOR A HIDDEN LOOK
    • TAPPED 3/8-24 NPT AT REAR OF TANK FOR GAS CROSSOVER LINE (NOT INCLUDED)
    • USE WITH 13/16" (22 MM) FUEL VALVE
    NOTE: THESE TANKS MUST BE PRESSURE TESTED, SEALED AND PRE-MOUNTED ON FRAME TO VERIFY COMPATIBILITY OF ALL RELATED PARTS BEFORE PAINTING
    V-FACTOR
    RAW STEEL 4.7 GALLON TANK
    23" TUNNEL LENGTH
    FLUSH BUNG, FLUSH MOUNT CAP

MANUFACTURER:

MFG#:

HD CROSS REFERENCE#:
