Cam S&S 475G Gear Drive Cam Fits Big Twin M8 2017 / Later Includes All Parts To Install

Cam S&S 475G Gear Drive Cam Fits Big Twin M8 2017 / Later Includes All Parts To Install

66997
$524.17
$524.17
Shipping calculated at checkout.
Quantity must be 1 or more

GEAR DRIVE CAM KIT FOR MILWAUKEE-EIGHT

WEIGHT: 0.00

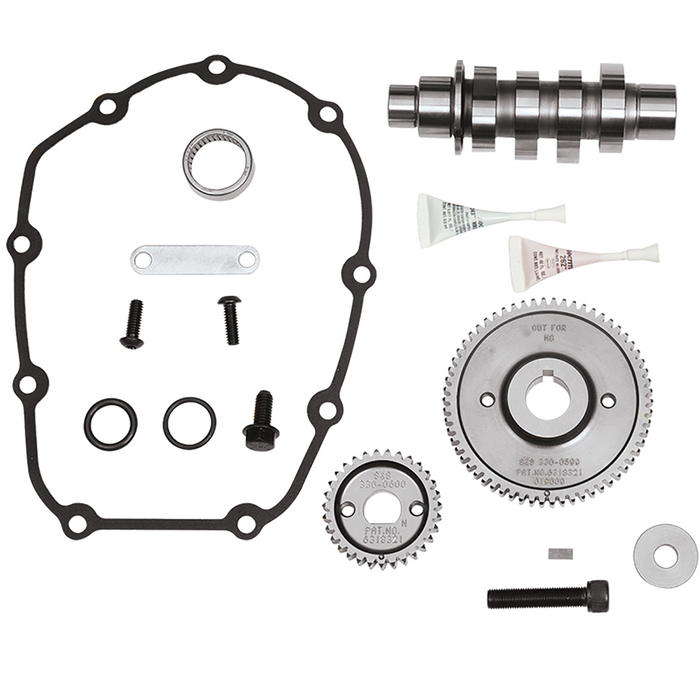

  • KITS INCLUDE ALL REQUIRED BEARINGS , O-RINGS , AND HARDWARE
  • GEAR DIRVE CAMS PROVIDE IMPROVED VALVE TIMING ACCURACY
  • MADE IN THE USA

475G GEAR DRIVE KIT


CAM NAME
TDC LIFT
CYLINDER

 VALVE TIMING VALVE DURATION

 VALVE LIFT

 LOBE CENTER LINE

 VALVE LIFT @ TDC
INTAKE EXHAUST INTAKE

 EXHAUST

 INTAKE

 EXHAUST

 INTAKE

 EXHAUST

 INTAKE

 EXHAUST
OPEN BTDC/
CLOSE
ABDC

OPEN
BTDC/
CLOSE
ABDC
475G FRONT 6.2/27.2 55.5/28.5 213.5 263.9 .475 .475 100.5 103.5 .107 .208
HP REAR 2.2/31.2 52.5/20.2 213.5 252.5 .475 .475 104.5 106.0 .093 .170
