S&; S CHAIN DRIVE CAM KITS
WEIGHT: 0.00- GREAT WAY TO INCREASE PERFORMANCE AT AN AFFORDABLE PRICE
- QUICK INSTALLATION - REUSE MANY OF THE STOCK COMPONENTS
- EASY START CAMS ALLOW STOCK STARTER TO START ANY ENGINE
- CAM SPECIFICATIONS ARE FOR BIG TWIN 2007/LATER
551G: DESIGNED FOR ENGINES WITH 96" TO 106" AND 9:1 TO 9:9 COMPRESSION. THIS BOLT-IN CAM SET IS DESIGNED FOR STOCK OR MILDLY MODIFIED TOURING BIKES. 551 CAMS ARE NOT RECOMMENDED FOR COMPRESSION RATIOS OF 10:1 OR GREATER. GREATLY IMPROVES LOW-END AND MID-RANGE TORQUE , STRONGEST FROM IDLE TO 4000 RPM
570G: DESIGNED FOR 88" TO 103" ENGINES WITH COMPRESSION RATIOS BETWEEN 9:1 AND 10:1. THIS CAM WILL PROVIDE A NICE POWER INCREASE ACROSS THE ENTIRE POWER BAND. 3200-5700 RPM. EXCELLENT BOLT-IN FOR OVERALL POWER ON 103"
583G: OPTIMIZED FOR USE IN THE SOFTAIL® AND DYNA® LINES , THIS CAM MAKES HORSEPOWER AND TORQUE THAT YOU CAN FEEL ALL THE WAY THROUGH THE RPM RANGE , MAKING THE MOST POWER RIGHT WHERE YOU NEED IT. 1500-5000 RPM
585G: DESIGNED FOR 88" TO 95" ENGINES WITH COMPRESSION RATIOS FROM 9.7:1 TO 10.5:1 AND 100" TO 124" ENGINES FROM 9:1 TO 10:1 COMPRESSION. PROVIDES MASSIVE HORSEPOWER AND TORQUE INCREASES STARTING AT 3000 RPM AND HOLDS STEADY ALL THE WAY TO REDLINE. 3500-6000 RPM FOR 88"- 103" ENGINES AND 2500-5500 RPM FOR LARGER ENGINES.
MR103: DESIGNED AS BOLT-IN CAMS FOR 103 CID ENGINES WITH STOCK 9.7:1 COMPRESSION RATIO UP TO 10.5:1. WORKS WELL WITH STOCK , UN-PORTED HEADS , BUT IS GREAT FOR S&S CNC PORTED HEADS. MORE POWER ACROSS THE RPM RANGE , BEST RESULTS FROM 2500 - 5500 RPM. BOLT-IN
HP103:DESIGNED AS BOLT-IN CAMS FOR ENGINES WITH 103 AND STOCK 9.7:1 COMPRESSION UP TO 10.5:1. WORKS WELL WITH STOCK , UN-PORTED HEADS , BUT IS GREAT FOR S&S CNC PORTED HEADS. BEST POWER IN THE HIGHER RPM RANGE , 3000-6000 RPM. BOLT-IN.
S & S

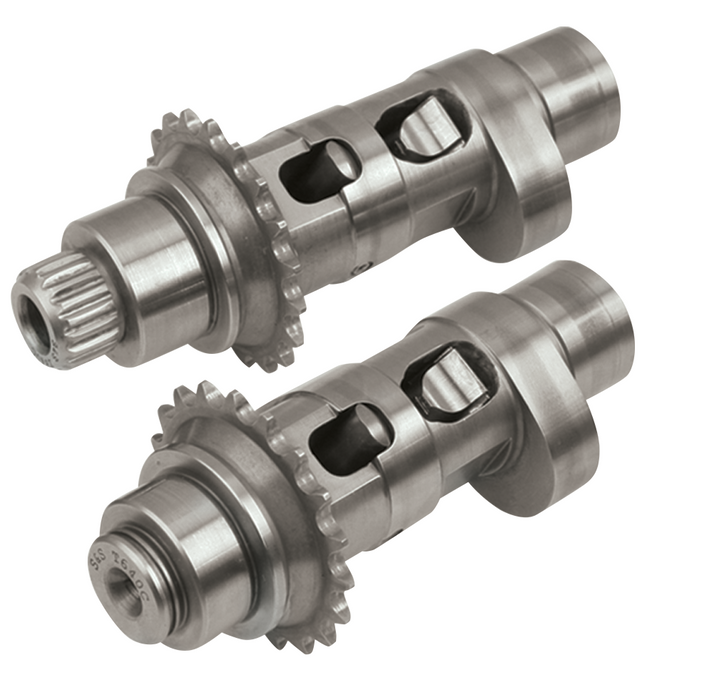

MR103 EASY START CHAIN DRIVE
FITS BIG TWIN 2007/LATER
VALVE TIMING INTAKE: 13 & DEG/33 & DEG
VALVE TIMING EXHAUST: 50 & DEG/22 & DEG
VALVE DURATION INTAKE: 226 & DEG
VALVE DURATION EXHAUST: 252 & DEG
VALVE LIFT .585"
CENTERLINE INTAKE: 100.0 & DEG
CENTERLINE EXHAUST: 104.0 & DEG
LIFT @ TDC INTAKE: .172"
LIFT @ TDC EXHAUST: .177"
BY: S&S CYCLE INC
