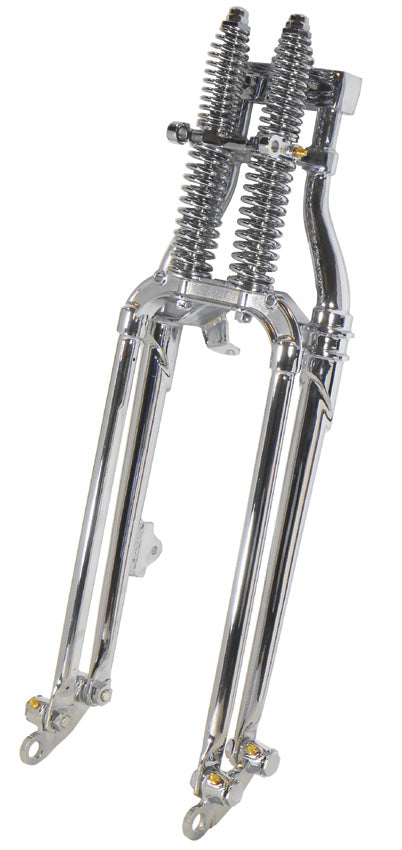

HARDBODY CHROME 26" ANTIQUE STYLE SPRINGERS + 2 OVER FOR HARLEY DAVIDSON CUSTOM APPLICATIONS
WEIGHT: 50.00- FULLY ASSEMBLED WITH IN-LINE TOP BRACKET WITHOUT BUILT IN RAKE (0° RAKE)

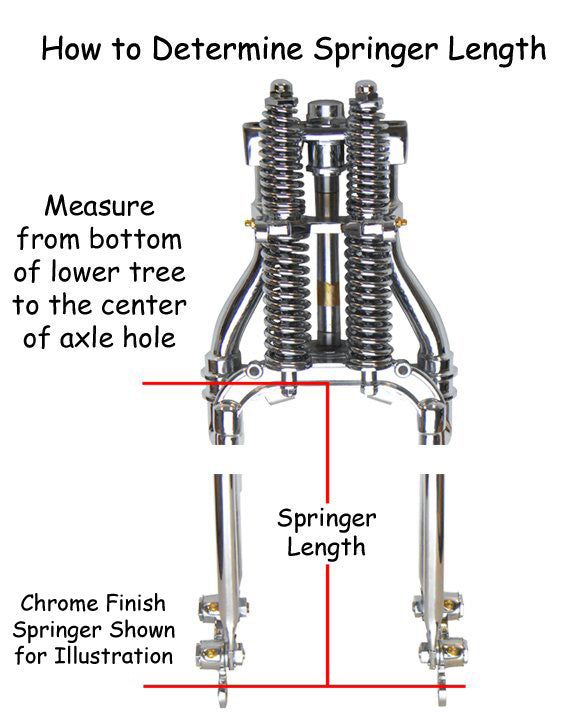

- THE STANDARD LENGTH SPRINGER (20" MEASURED FROM THE BOTTOM OF THE LOWER TREE TO THE AXLE CENTER) IS COMPARABLE TO VINTAGE FL MODEL FORK LENGTH
- 1" O.D. STEERING STEM DESIGNED FOR TIMKEN® TYPE BEARINGS
- USE OUR PART 36652 NECK CUP CONVERSION KIT TO INSTALL SPRINGER ON K MODEL AND SPORTSTER 1952/1981
- MEASURES 8 3/4" BETWEEN THE AXLE ROCKERS (CAST ROCKERS)

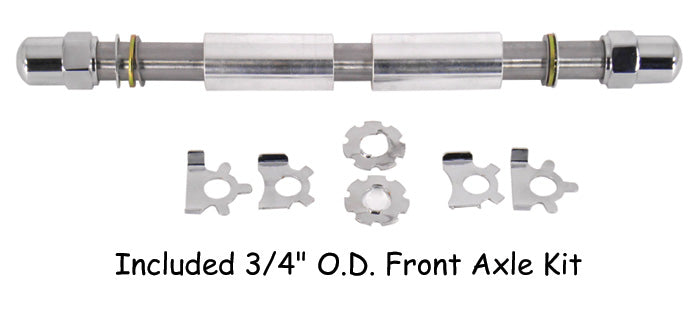

- INCLUDES 3/4" O.D. AXLE
- RISE MOUNTS ARE ON 4 3/4" CENTERS AND THREADED 1/2-20
- UNIVERSAL BRAKE ROD MOUNT IS ON THE RIGHT REAR LEG FOR DISC BRAKES (5/8" HOLE)
HARDBODY
CHROME PLATED SPRINGER , 26" LENGTH
