Heel Toe Shifter Lever Chrome 1991 / 2017 FXD Footboard Kit
Heel Toe Shifter Lever Chrome 1991 / 2017 FXD Footboard Kit

Heel Toe Shifter Lever Chrome 1991 / 2017 FXD Footboard Kit

21-0793
$106.19
$106.19
Shipping calculated at checkout.
Quantity must be 1 or more

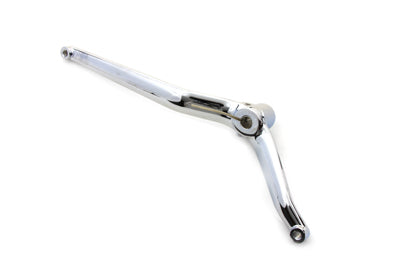

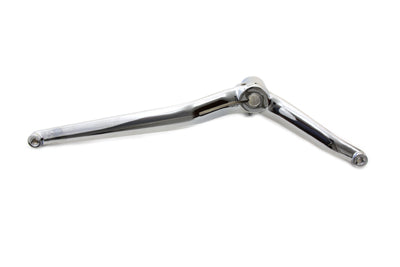

Chrome heel toe shifter lever for FXD footboard kit. The shifter peg hole is 5/16 -24 thread. The center shaft area is splined and the inner diameter of the splined hole is 0.471 . The center of the spline to center of hole on short side is 4-3/4 center of the spline to center of the hole on long side is 9-3/8 . And end to end is 14 . has allen screw next to center spline hole to attach to inner shifter arm.

FITMENT

  • 1991 / 2017 FXD Footboard Kit

    • TECH NOTES

  • Suggested to use with #27-0920 footboard kit

    • MEASURMENTS

  • Total Length: 14 inches

    • ACCESSORY ITEMS

  • 16-0529
  • 21-0674
  • 37-9104
  • 21-0910

    • Tech Notes

    Suggested to use with #27-0920 footboard kit
