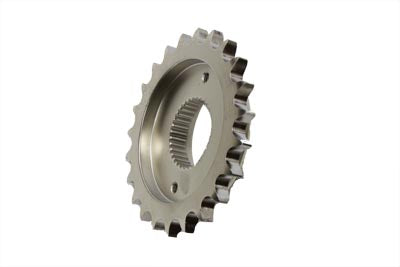

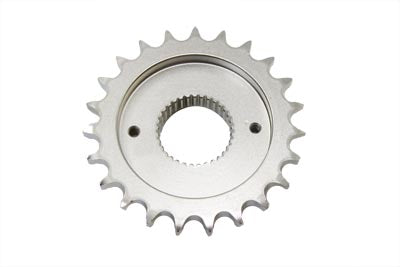

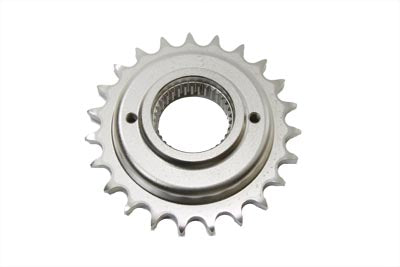

23 tooth front transmission sprocket with a .500 offset and 2 holes. For 5 speed models. Allows the installation of a 180 tire without transmission offset. .900 offset is the maximum offset without any modification to the stock inner primary.
FITMENT
0 / Custom application for chain drive conversion
1991 / UP XLH
TECH NOTES
.500inch offset is measured from the back side of the teeth to the back side of the sprocket excluding the flange.
.940inch offset is measured from the center line of the teeth to the top of the flange on the back side of the sprocket.
Suggested to use with #20-0217 Pulley Indexing Flange Nut.
ACCESSORY ITEMS
20-0308
17-0204
8408-1
Tech Notes
.500" offset is measured from the back side of the teeth
