Stelling & Helling Speedster Handlebar Chrome 1936 / 1957 G 1936 / 1952 W 1936 / 1948 EL 1941 / 1948 FL
Stelling & Helling Speedster Handlebar Chrome 1936 / 1957 G 1936 / 1952 W 1936 / 1948 EL 1941 / 1948 FL
Stelling & Helling Speedster Handlebar Chrome 1936 / 1957 G 1936 / 1952 W 1936 / 1948 EL 1941 / 1948 FL
Stelling & Helling Speedster Handlebar Chrome 1936 / 1957 G 1936 / 1952 W 1936 / 1948 EL 1941 / 1948 FL

Stelling & Helling Speedster Handlebar Chrome 1936 / 1957 G 1936 / 1952 W 1936 / 1948 EL 1941 / 1948 FL

49-0726
Regular price
Sold out
Sale price
$312.53
Shipping calculated at checkout.
Quantity must be 1 or more

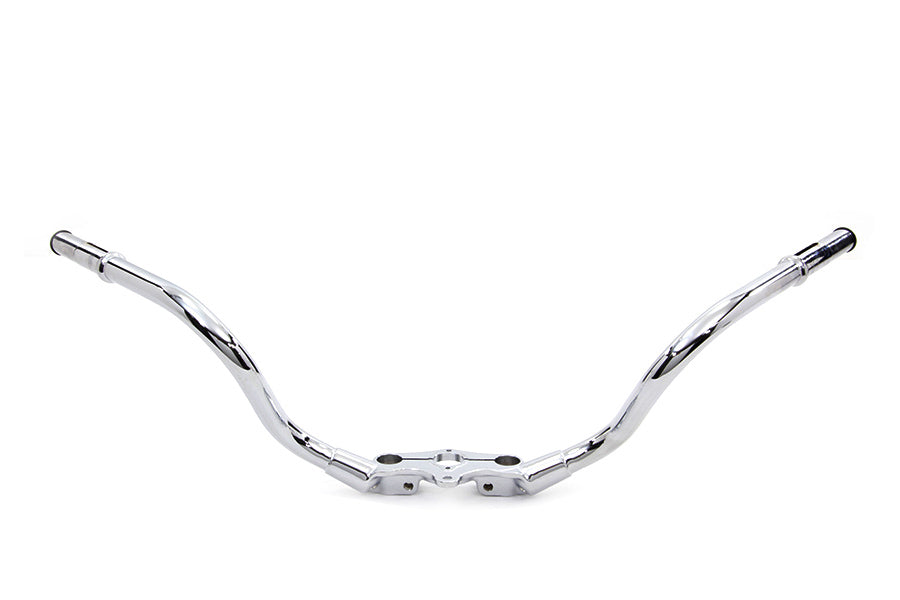

Stelling & Helling 8 speedster handlebar is for inline spring forks and features a chrome finish. Jack Tracey asked Stelling & Helling to develop handlebars that were 4 taller than the original comfortable Speedster. Bars feature a chrome finish. Horn and dimmer switch mount holes are on the left side. The distance between the holes center to center measures 4-3/4 . Order internals and pinch bolts separately. Order short spirals separately requires two per bar. Grips must be cut to length for this installation. Parkerized end plugs included. The center to center of the outer holes where the fork goes through the handleber measures 4-3/4 . NOTE: Bars have shortened grip area to accept the short Hellings type spirals as used on the Stellings bars of the late 1940's. Features brazed construction as original! *Note: UPS may consider this part as packaged oversize for shipment as compared to the actual weight which will result in higher shipping costs.

FITMENT

  • 1936 / 1957 G
  • 1936 / 1952 W
  • 1936 / 1948 EL
  • 1941 / 1948 FL
  • TECH NOTES

  • Suggested to use with #49-1324 Handlebar Spiral Set.
  • MEASURMENTS

  • Rise to Grip Tip: 3 inches
  • Rise to Center: 4 inches
  • Pull Back: 6 inches
  • Width Tip to Tip: 33-5/8 inches
  • Bar Diameter: 1 inches
  • Center Width: 12-3/4 inches
  • ACCESSORY ITEMS

  • 49-1324
  • 49-1371
  • 36-0481
  • Tech Notes

    Suggested to use with #49-1324 Handlebar Spiral Set.
