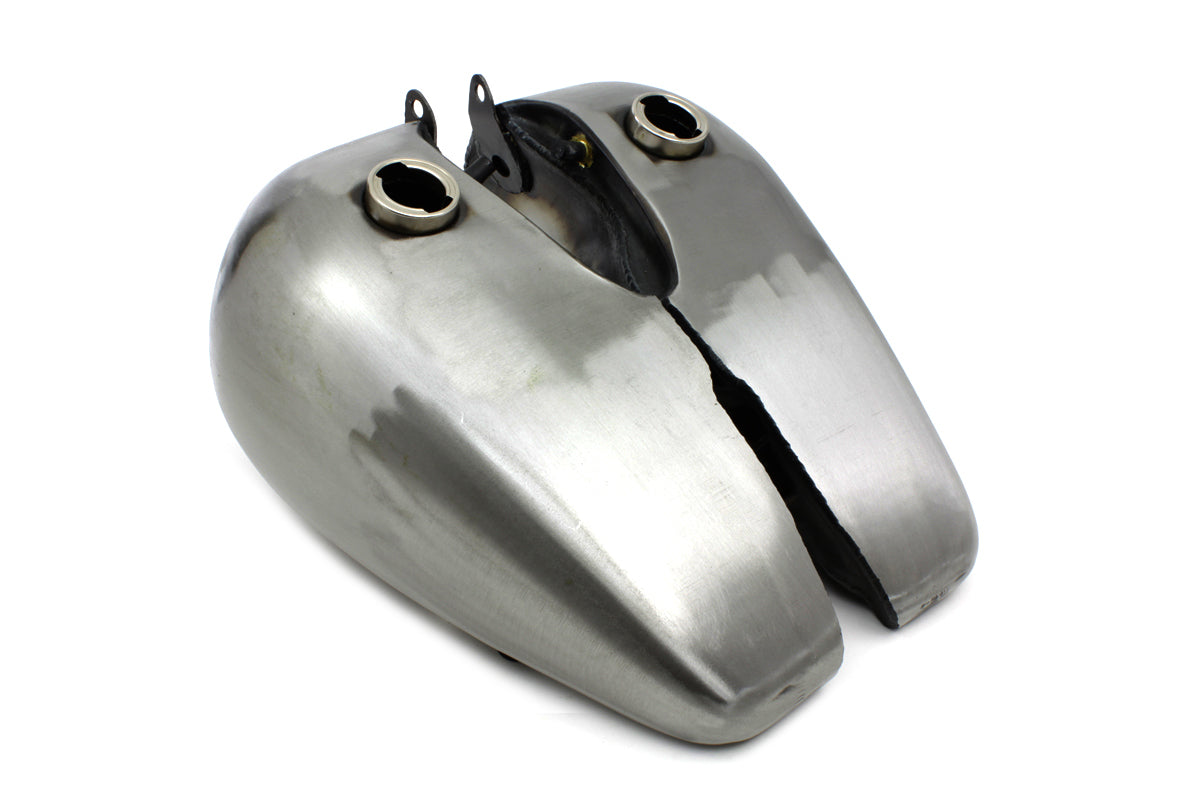

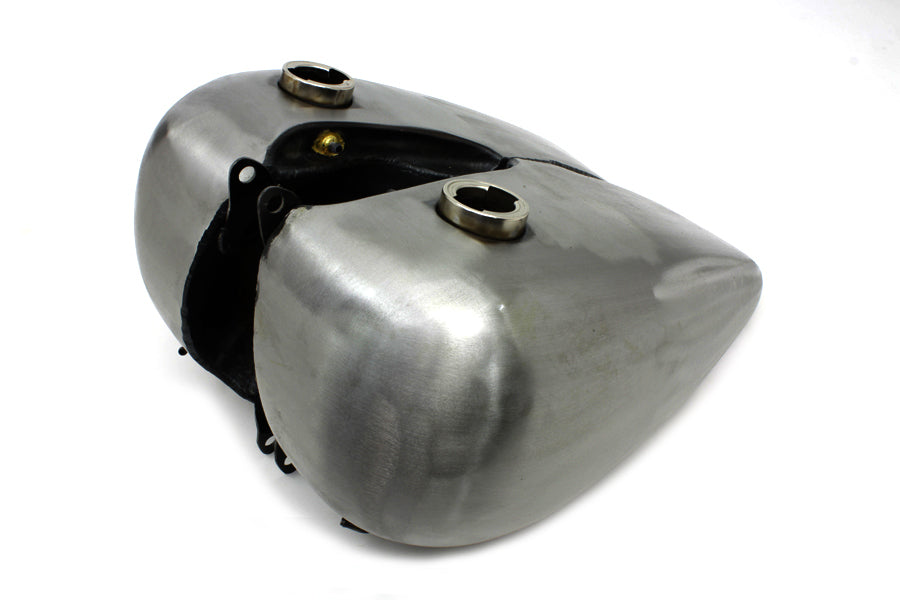

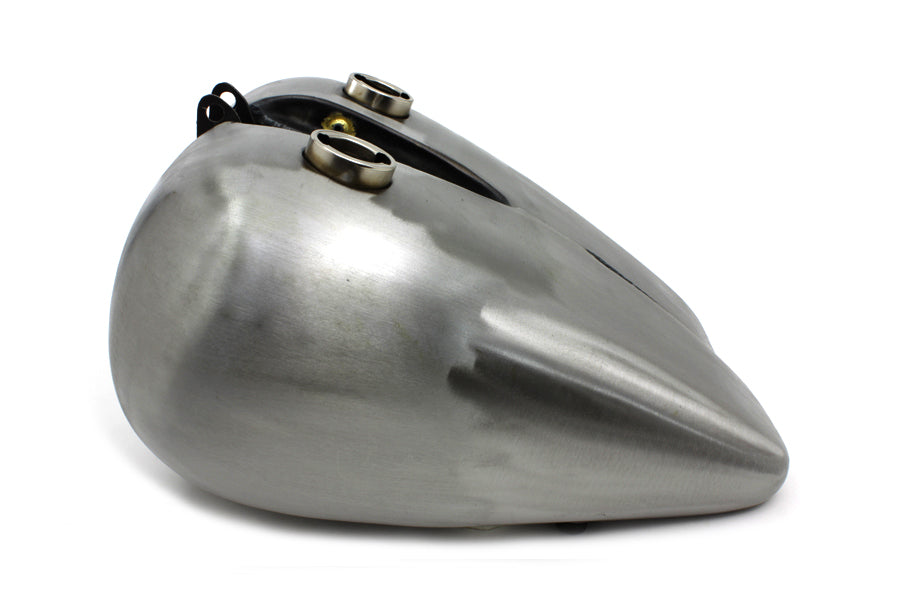

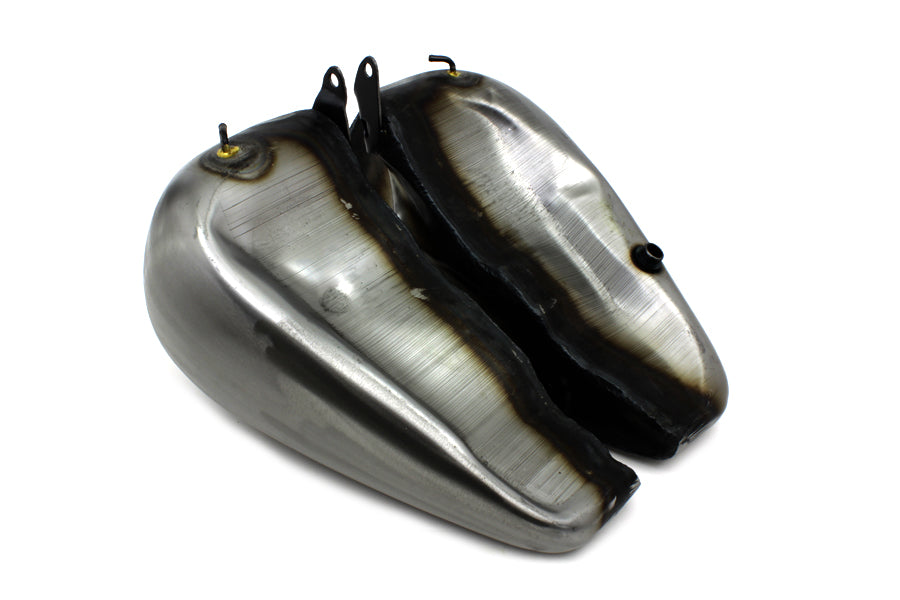

Bobbed gas tank set accepts stock dash and speedometer. Tank has a 5.0 gallon fuel capacity. Tank features left side petcock hole. Sold as a two piece set. Petcock hole is 3/8 NPT to accept a male petcock. The tank is equipped with a bayonet style cap bung. Tank requires sanding and primer before painting. The petcock fitting should be masked or plugged during painting for easy installation of petcock. Order cap set and petcock separately. It is suggested to pressure test the tank and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. All tanks or tank sets will require hand fitting to give correct alignment for dash and fuel line fitment. Dash will also have to be shimmed when installed to achieve correct height.
FITMENT
1947 / 1984 FL
1971 / 1984 FX
TECH NOTES
Suggested to use #41-0113 Kreem gas tank combo kit.
Suggested to use #38-6682 emblem set.
Suggested to use #38-0111 weld on type emblem mount strips.
Suggested to use #38-7042 self adhesive type emblem mount strips.
Suggested to use with #35-0555 Petcock Straight Outlet Natural Alloy.
Suggested to use with #38-0312 Stock Style Gas Cap Set Vented and Non-Vented.
*NOTE: UPS may consider this part as packages inchoversizeinch for shipment as compared to the actual weight which will result in higher shipping costs.
MEASURMENTS
Top Length:
Bottom Length:
Rear Width:
Front Width:
Rear Height:
Front Height:
Front Tunnel Height:
Rear Tunnel Height:
Tunnel Length:
ACCESSORY ITEMS
38-0312
38-0584
35-0400
38-0312
Tech Notes
Suggested to use #41-0113 Kreem gas tank combo kit.
