80 Shovelhead Front Cylinder 1978 / 1984 FL 1978 / 1984 FX 1979 / 1983 FLT 1982 / 1983 FXR
80 Shovelhead Front Cylinder 1978 / 1984 FL 1978 / 1984 FX 1979 / 1983 FLT 1982 / 1983 FXR
80 Shovelhead Front Cylinder 1978 / 1984 FL 1978 / 1984 FX 1979 / 1983 FLT 1982 / 1983 FXR

80 Shovelhead Front Cylinder 1978 / 1984 FL 1978 / 1984 FX 1979 / 1983 FLT 1982 / 1983 FXR

11-0496
$204.48
$204.48
Shipping calculated at checkout.
Quantity must be 1 or more

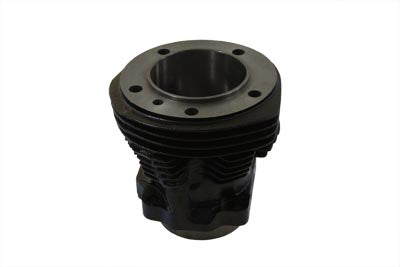

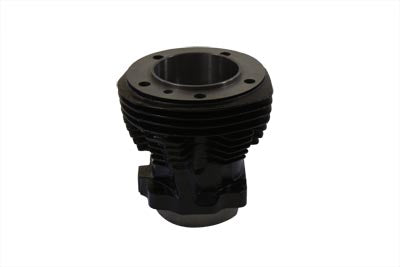

Front cylinder fits Shovelhead 1979-1985 80 models. Cylinders are for stock bore stock stroke and compression. Sold each. Cylinders are 88.86mm bore with + or - .005mm range of tolerance and must be honed to standard size for proper fit. Pistons are not included. May require the use of a cylinder base nut set available separately. *NOTE: All cast iron cylinders have same piston to wall clearance .0025 -.003.

FITMENT

  • 1978 / 1984 FL
  • 1978 / 1984 FX
  • 1979 / 1983 FLT
  • 1982 / 1983 FXR

    • TECH NOTES

  • Suggested to use with #8601-8 Hi-Torque Cylinder Base Nut.

    • MEASURMENTS

  • Bore Size: 3-7/16 inches

    • ACCESSORY ITEMS

  • 16-0622
  • 16-1728

    • Tech Notes

    Suggested to use with #8601-8 Hi-Torque Cylinder Base Nut.
