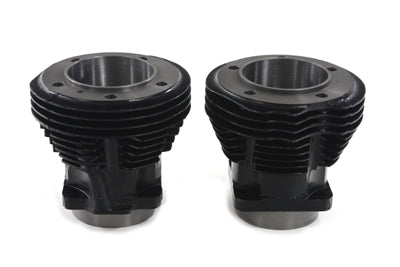

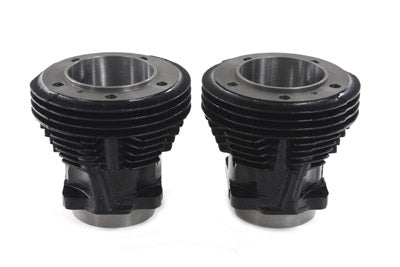

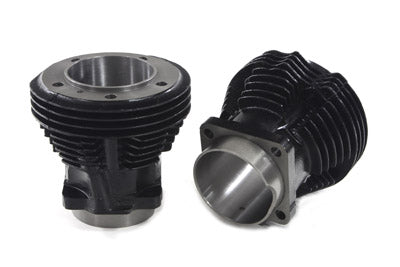

Cylinders are stock height. For installation of 3-5/8 cylinders after spigot holes have been enlarged. (See diagram for photos.) *NOTE: 3-5/8 cylinders are drilled to use with 4-1/2 and 4-1/4 stroke. Will require break in as suggested in the shop manual. These are cylinders only. Order pistons and rings separately. These cylinders will require crankcase cylinder spigot holes to be bored out. Disassmbly of engine is required to install these cylinders. NOTE: The finished bore size should be 3.6270 . *NOTE: All cast iron cylinders have same piston to wall clearance .0025 -.003.
