7 LED Headlamp Assembly Chrome 2014 / UP FLT except FLTR2014 / UP FLHXXX 1991 / 2017 FLS 1991 / 2017 FLSS 1991 / 2017 FLSTC 1991 / 2017 FLSTF 1991 / 2017 FLSTFB 1991 / 2017 FLSTFBS 1991 / 2014 FLSTN
7 LED Headlamp Assembly Chrome 2014 / UP FLT except FLTR2014 / UP FLHXXX 1991 / 2017 FLS 1991 / 2017 FLSS 1991 / 2017 FLSTC 1991 / 2017 FLSTF 1991 / 2017 FLSTFB 1991 / 2017 FLSTFBS 1991 / 2014 FLSTN
7 LED Headlamp Assembly Chrome 2014 / UP FLT except FLTR2014 / UP FLHXXX 1991 / 2017 FLS 1991 / 2017 FLSS 1991 / 2017 FLSTC 1991 / 2017 FLSTF 1991 / 2017 FLSTFB 1991 / 2017 FLSTFBS 1991 / 2014 FLSTN
7 LED Headlamp Assembly Chrome 2014 / UP FLT except FLTR2014 / UP FLHXXX 1991 / 2017 FLS 1991 / 2017 FLSS 1991 / 2017 FLSTC 1991 / 2017 FLSTF 1991 / 2017 FLSTFB 1991 / 2017 FLSTFBS 1991 / 2014 FLSTN

7 LED Headlamp Assembly Chrome 2014 / UP FLT except FLTR2014 / UP FLHXXX 1991 / 2017 FLS 1991 / 2017 FLSS 1991 / 2017 FLSTC 1991 / 2017 FLSTF 1991 / 2017 FLSTFB 1991 / 2017 FLSTFBS 1991 / 2014 FLSTN

33-1643
$262.13
$262.13
Shipping calculated at checkout.
Quantity must be 1 or more

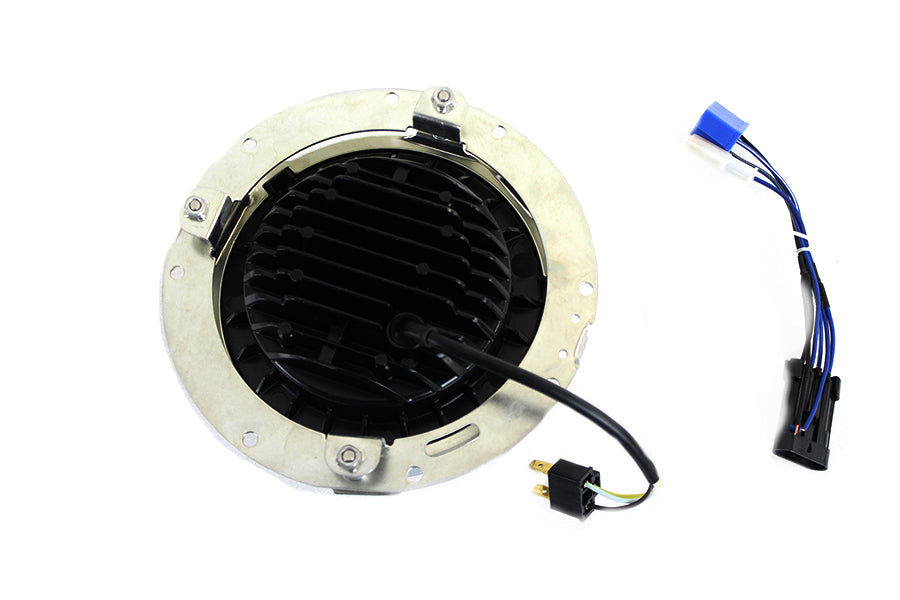

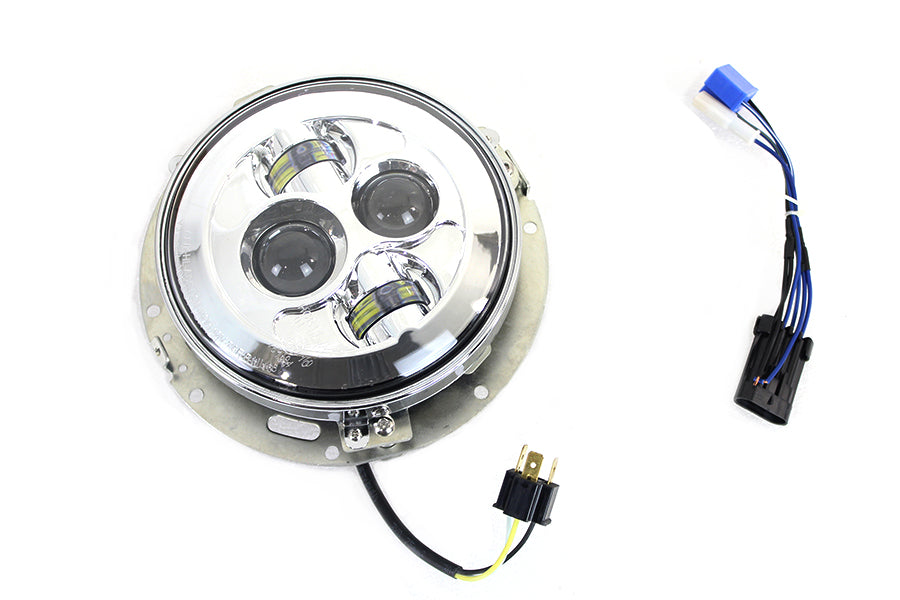

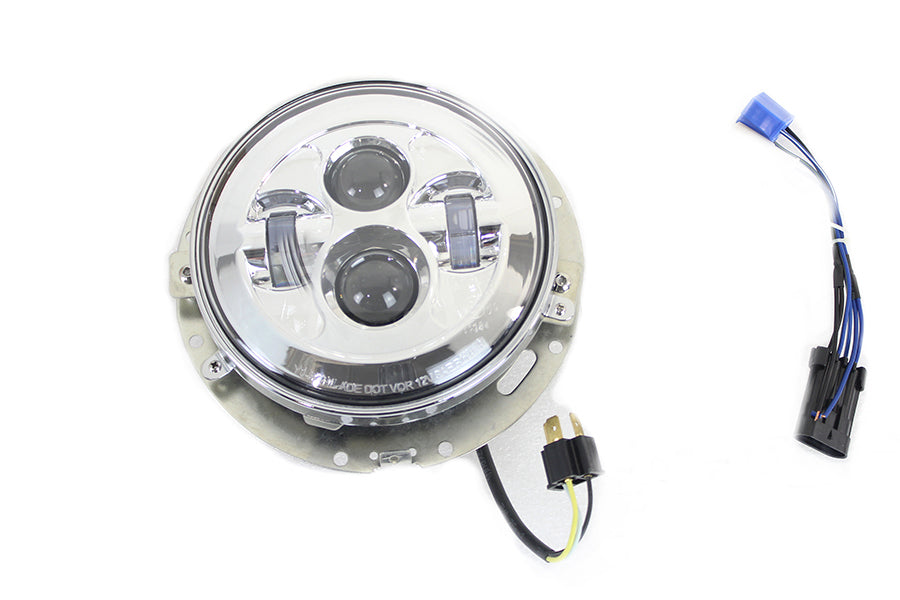

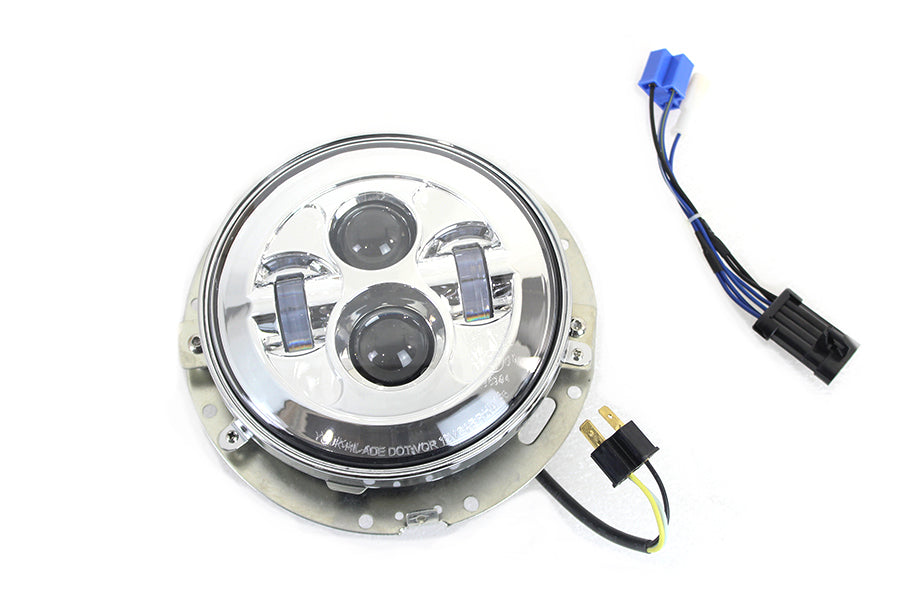

7 LED daylight headlamp unit features a chrome finish. Assembly includes 7 LED bulb unit bracket with hardware attached wire harness with OE style connector end and additional harness adapter for use on 2014-UP Touring models. Bulb features two D-shape lenses to focus light in front as well as a top low beam and bottom high beam which projects light ahead of the bike. *NOTE: Does not fit Softail models with Freight Train Headlamp Nacelle Kit. *NOTE: LED headlamp wiring harness OEM #69200897 is included.

FITMENT

  • 2014 / UP FLT except FLTR
  • 2014 / UP FLHXXX
  • 1991 / 2017 FLS
  • 1991 / 2017 FLSS
  • 1991 / 2017 FLSTC
  • 1991 / 2017 FLSTF
  • 1991 / 2017 FLSTFB
  • 1991 / 2017 FLSTFBS
  • 1991 / 2014 FLSTN
