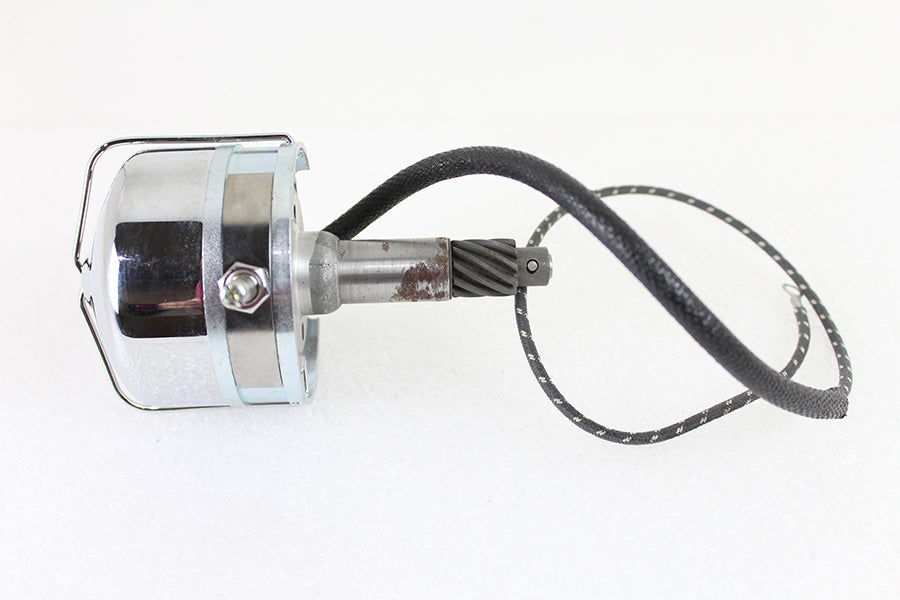

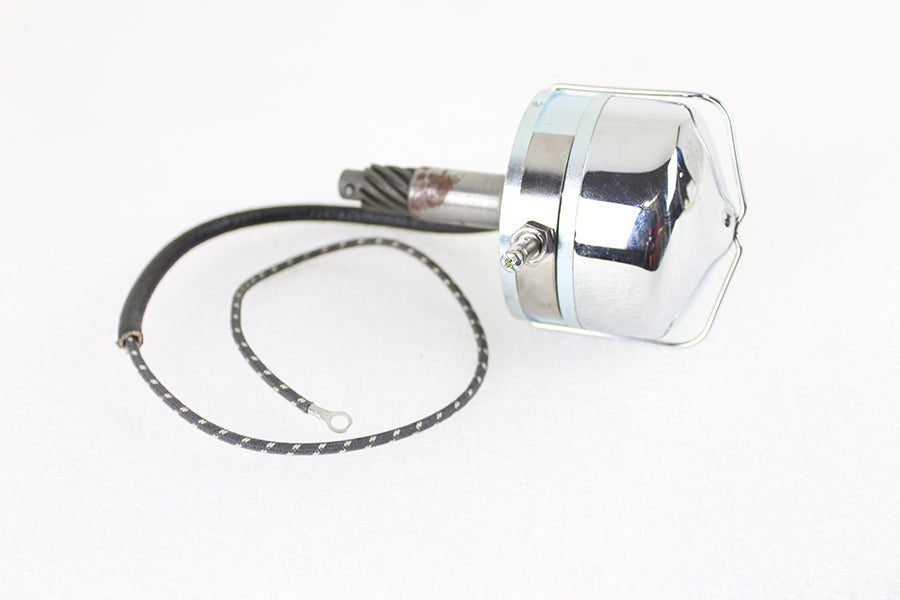

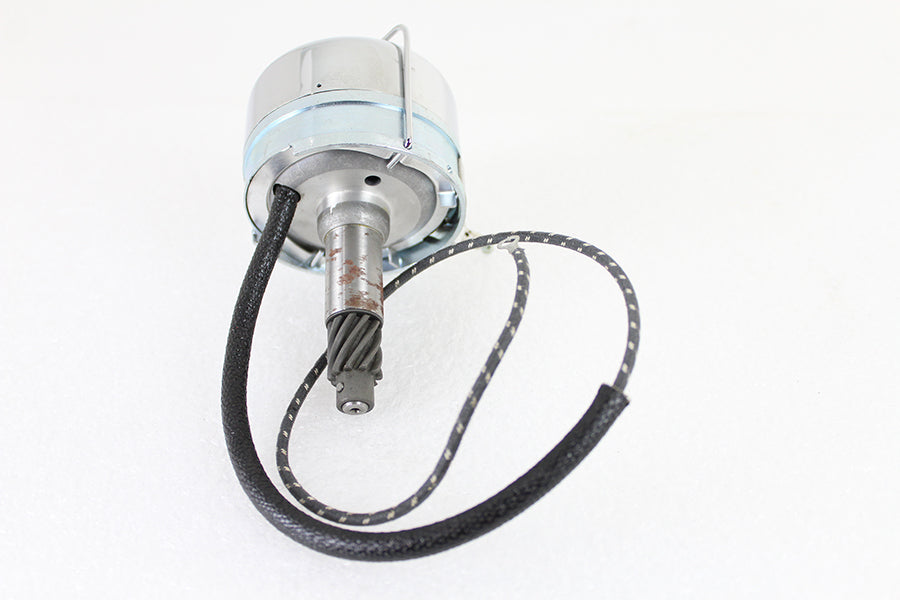

Single Point Alloy Distributor 1948 / 1952 WL 1948 / 1963 G 1948 / 1948 UL
Single Point Alloy Distributor 1948 / 1952 WL 1948 / 1963 G 1948 / 1948 UL
Single Point Alloy Distributor 1948 / 1952 WL 1948 / 1963 G 1948 / 1948 UL

Single Point Alloy Distributor 1948 / 1952 WL 1948 / 1963 G 1948 / 1948 UL

32-0039
$317.93
$317.93
Shipping calculated at checkout.
Quantity must be 1 or more

Alloy single point distributors are two bolt manual advanced style and feature a natural alloy finish base with shaft and gear installed. Top housing includes 1948-1969 type single points condenser adjuster plate top clip base retainer and points wire. Original framework construction throughout and is great for restoration. Distributor is fitted with 1948-1963 type points but will fit 1930-1936 RL 1937-1947 W and G models. *NOTE: 45 WL/G and Big Twin Flatheads uses gasket 2 12-24 x 1/2 fillister screws with split lockwasher to mount distributor. The distributor base is mounted to engine first then distributor top is put in place.

FITMENT

  • 1948 / 1952 WL
  • 1948 / 1963 G
  • 1948 / 1948 UL

    • TECH NOTES

  • Use #15-0153 Base Gasket.

    • ACCESSORY ITEMS

  • 32-0061
  • 32-1312
  • 32-1286
  • 32-0068

    • REPLACEMENT PARTS

  • 32-0045
  • 32-0134
  • 32-9265

    • Tech Notes

    Use #15-0153 Base Gasket.
