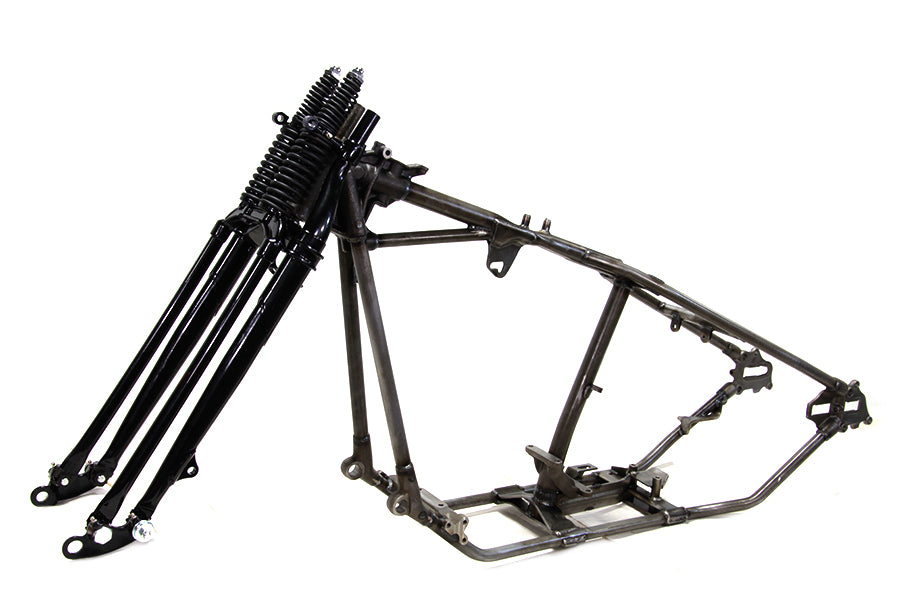

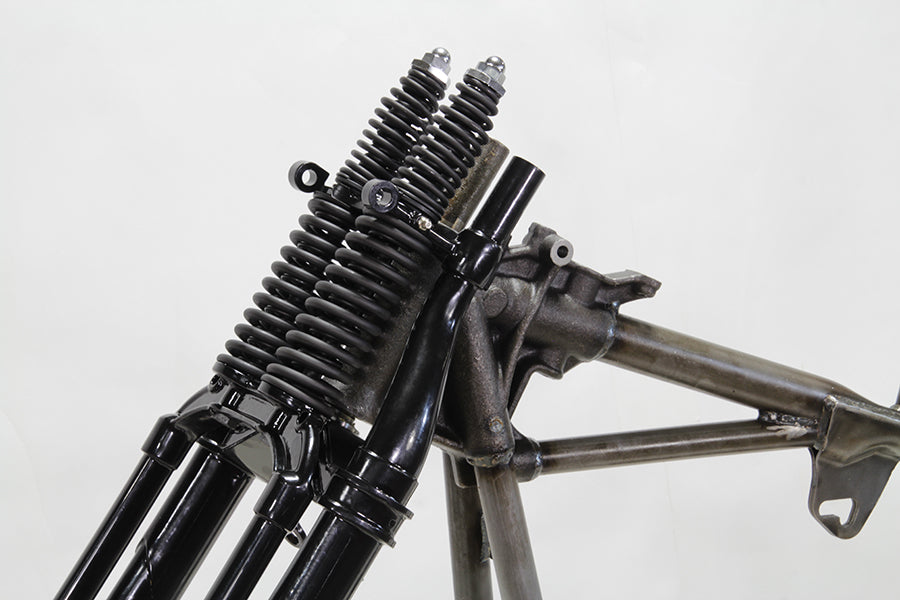

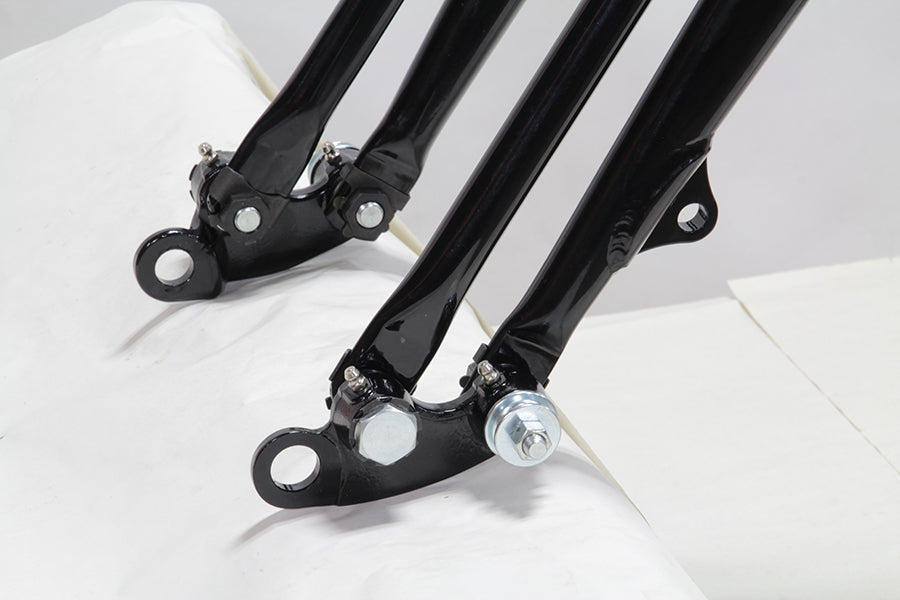

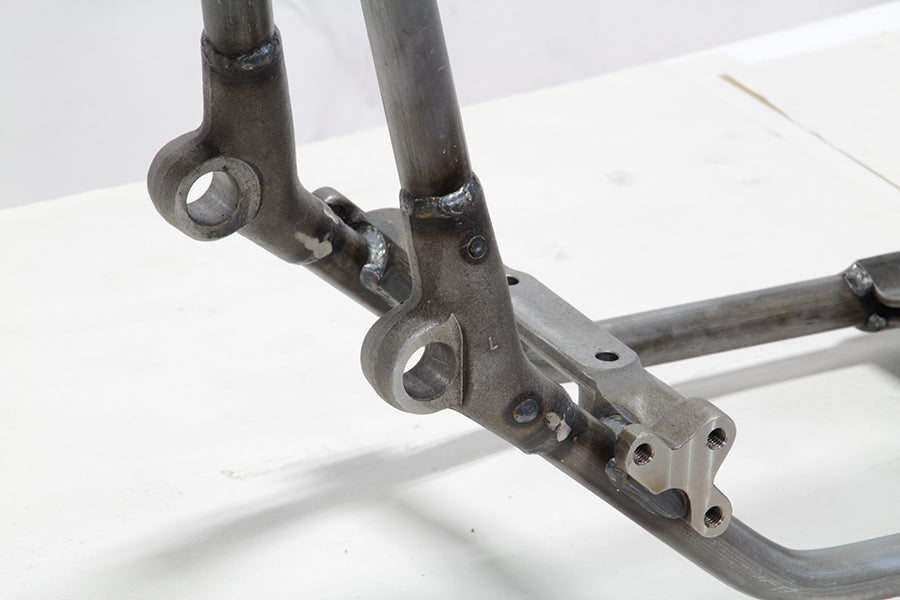

Frame and fork kit inlcudes a replica retro rigid 30° rake frame and 32 inline spring fork assembly that features a black finish. Frame will accept Panhead or Shovelhead engine with 4-speed transmission also accepts Knuckle or Flathead engines with use of a 3/8 front engine mount spacer. Features seat post axle transmission plate mechanical brake cross shaft bushings tool box mount and grease fittings already installed. Crossbar features a cable mount tab under the gas tank. Forged parts include: Neck front and rear engine mounts side car mounts top seat post yoke footboard tabs and rear axle plates. Neck will ac cept key lock. Must order lower tank frame mount separately. *NOTE: Seat post and cross shaft bushings may require further reaming for proper fit. Therefore frame will not be accepted for return (RGA). *NOTE: There are no serial numbers stamped on the replica frame. V-Twin MFG supplys a Bill of Sale only referencing the part number. *Note: UPS may consider this partas packaged oversize for shipment as compared to actual weight which will result in higher shipping costs.
