Knucklehead Engine Case Set 1941 / 1947 FL
Knucklehead Engine Case Set 1941 / 1947 FL
Knucklehead Engine Case Set 1941 / 1947 FL
Knucklehead Engine Case Set 1941 / 1947 FL

Knucklehead Engine Case Set 1941 / 1947 FL

10-0980
$1,637.82
$1,637.82
Shipping calculated at checkout.
Quantity must be 1 or more

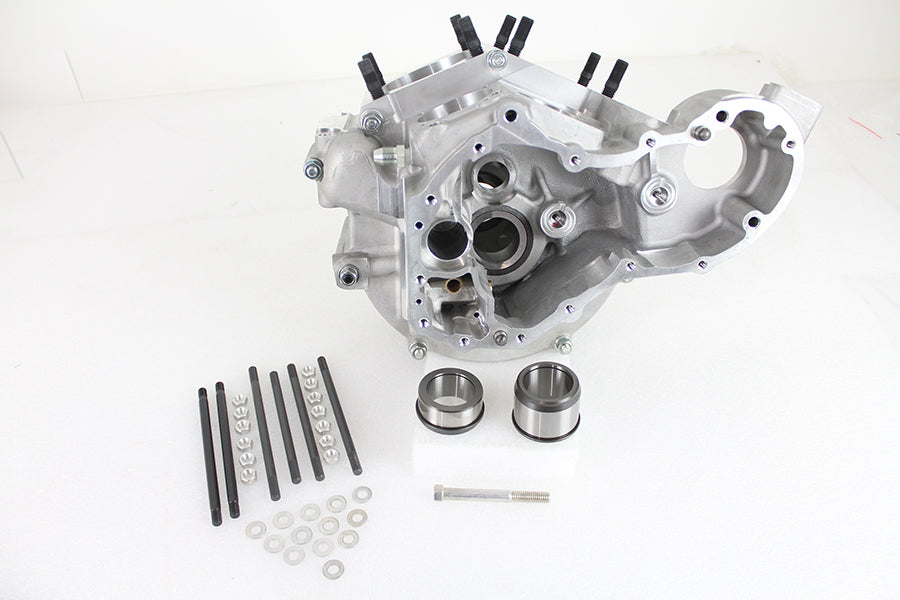

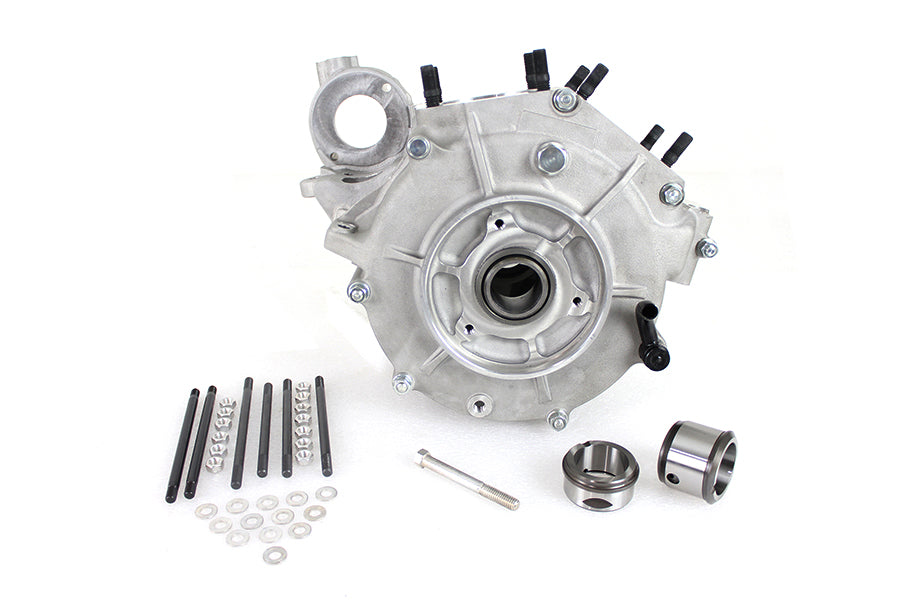

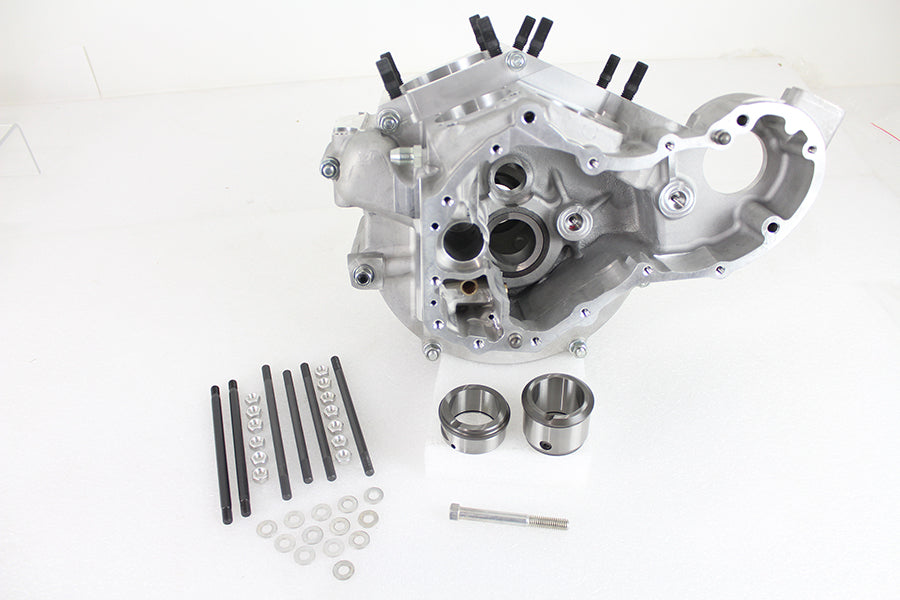

Knucklehead engine case set includes case bushings standard size rollers. Oil from top end returns through pushrod tubes. Does not return through cylinder base. Case accepts loose roller bearings on the sprocket and pinion shaft side. Case set is designed for replacement of the original cases. No serial numbers are provided with these case sets. A Bill of Sale will be issued for blank cases. Case set includes pinion and sprocket shaft races. Use 2 gaskets when mounting the oil pump body for proper clearance. **NOTE: Numeral 7 stamped on rear motor mount halves to denote 74 cubic inch. Builder may stamp these numbers in.

FITMENT

  • 1941 / 1947 FL

    • TECH NOTES

  • *NOTE: To confirm the main bearing fitment clearance you must take the standard bearing measurement and multiply it by 2 then add that answer to the left side sprocket shaft
  • meaurement. For example the standard bearing measures .250 multiplied by 2 equals .500. The left side sprocket shaft measures 1.000 adding them together you get 1.500 which
  • means you're running 1.501 fitment with .001 clearance.

    • ACCESSORY ITEMS

  • 10-0942
  • 10-0104
  • 10-1007
  • 49-0946

    • REPLACEMENT PARTS

  • 8132-34
  • 10-0293
  • 10-0104

    • Tech Notes

    *NOTE: To confirm the main bearing fitment clearance, you
