Replica Black Oil Tank 1937 / 1937 EL 1937 / 1937 UL
Replica Black Oil Tank 1937 / 1937 EL 1937 / 1937 UL
Replica Black Oil Tank 1937 / 1937 EL 1937 / 1937 UL

Replica Black Oil Tank 1937 / 1937 EL 1937 / 1937 UL

40-0472
$276.75
$276.75
Shipping calculated at checkout.
Quantity must be 1 or more

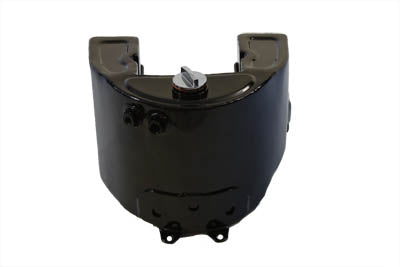

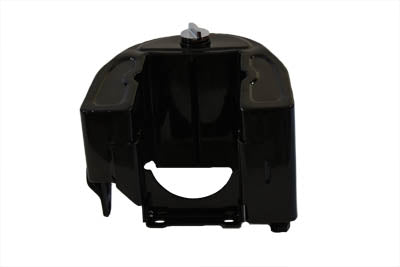

Replica 1937 oil tank includes original style and accoutrements in black finish. Tank has embossed smooth edge top welded panel. Bottom feed hole is 3/4 - 20 TPI and requires a fitting to resize the hole to 1/2 - 20 TPI for the banjo bolt. The left vent hole is 3/8 - 24 TPI. The right return hole is 1/2 - 20 TPI. We suggest to use taps to clean the threads before installing the oil lines. *NOTE: Must order oil line banjo fitting and oil feed valve separately. *NOTE: Features 1/8 NPT internal threads for vent and return lines. *NOTE: The battery compartment dimensions are 5 wide x 4-1/2 long x 7 tall.

FITMENT

  • 1937 / 1937 EL
  • 1937 / 1937 UL

    • TECH NOTES

  • Requires the use of #40-0623 Oil Banjo Line Fitting and #40-0156 Banjo Fitting Bolt for Feed and Return Oil Lines.
  • Requires the use of #40-0157 Feed Oil Line washer for #40-0146 Cadmium Feed and #40-0148 Cadmium Return Oil Lines.
  • Suggested to use with #9601-10 Inner Primary Cover and Chain Mount Kit.
  • Suggested to use with #40-0325 Oil Feed Valve Assembly Zinc Plated.

    • MEASURMENTS

  • Height Front: 7 inches
  • Height Rear: 6-1/2 inches
  • Depth: 8-1/2 inches
  • Depth of Battery: 5 inches
  • Width: 10 inches
  • Battery Width: 4-7/8 inches

    • ACCESSORY ITEMS

  • 40-0623
  • 40-0325

    • Tech Notes

    Requires the use of #40-0623 Oil Banjo Line Fitting and
